Synology 10GB Net Card E10G30-T2

Kompletní specifikace

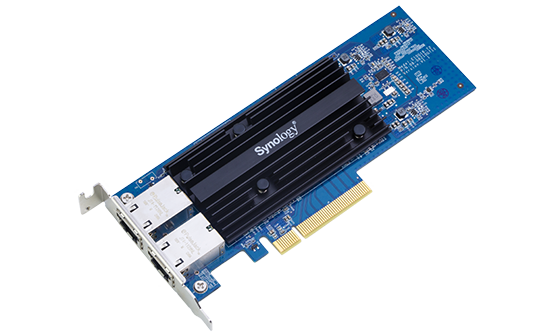

Dual-port, high-speed 10GBASE-T add-in card for Synology NAS servers

Achieve outstanding network performance with minimal effort
Enjoy a smooth migration to high-speed 10Gbps Ethernet. E10G18-T2 delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks. It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections. Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.

5 year warranty
Built to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.

General Specifications

Standards
IEEE 802.3an 10Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3ad Link Aggregation
IEEE 802.3x Flow Control

Data Transfer Rates 10 Gbps

Network Operation Mode Full Duplex

Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
TCP Segmentation Offload (TSO)

Applied Models

FS3017
FS2017
FS1018
RS18017xs+
RS18016xs+
RS10613xs+
RS4017xs+
RS3618xs
RS3617xs+
RS3617RPxs
RS3617xs
RS3614xs+
RS3614RPxs
RS3614xs
RS3413xs+
RS3412RPxs
RS3412xs
RS3411RPxs
RS3411xs
RS2818RP+
RS2418RP+
RS2418+
RS1619xs+
RS1219+
RS818RP+
RS818+
RC18015xs+
DS3617xs
DS3615xs
DS3612xs
DS3611xs
DS3018xs
DS1819+
DS1817+
DS1618+
DS1517+

Note
DSM version requirement: 6.2.1-23824 or later version

Hardware Specifications
PCIe Interface PCIe 3.0 x8
Bracket Height Low Profile and Full Height
Size (Height x Width x Depth) 170.6 mm x 68.9 mm x 13.6 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Warranty 5 Years
