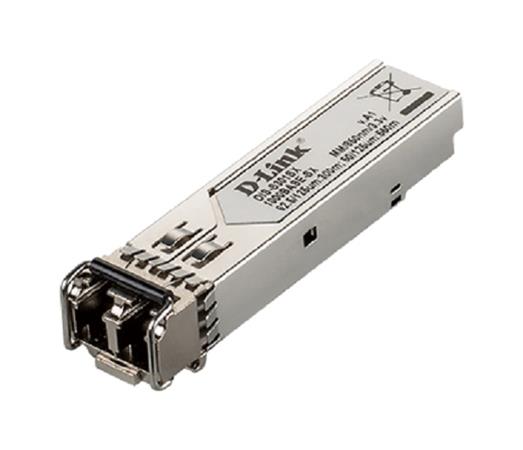

D-Link DIS-S301SX 1-port Mini-GBIC SFP to 1000BaseSX Transceiver

Kompletní specifikace

Features
Hot Pluggable
MSA Compliant
RoHS Compliant
Standard
Compliant Standard
IEEE802.3z
1000BASE-SX
Transceiver Type
SFP
Fiber Channel FC-PI standard
100-M6-SN-I/100-M5-SN-I
Fiber Media support
Multi-Mode
Distance
62.5/125um: 300m
50/125um: 550m
Speed
1.25Gbps
Interface
Connector
Duplex LC Connector
Single/bi Direction
Single-direction
Wavelength
850nm
Output Optical Power (TX Optical Power)
MAX.: -3dBm
MIN.: -8 dBm
Input Optical Power (RX Optical Power)
MAX.: - 3 dBm
MIN.: - 22 dBm
Sensitivity
-22dBm
Cable Type
Multi-mode 50/125um or 62.5/125um fibre
Operating
Power
3.3V
Max Input Current
300mA
Power Budget (MIN Power Budget)
14d B
MAX Power Budget
19d B
Heat Generated
1.782kJ/h
MTBF (hours)
224,167 hours
Physical & Environment
Operation Temperature
-40~85?
Storage Temperature
-40~85?
Humidity (Operating)
5%~95%
Humidity (Storage)
5%~95%
Dimension ( W x D x H )
13.7 x 55.4 x 8.5mm
Weight(g)
20g
Bail latch colour
Black
Emission (EMI) and Safety Certifications
EMI
CE, FCC, VCCI
Safety
LVD, EN60825-1, EN 60825-2
