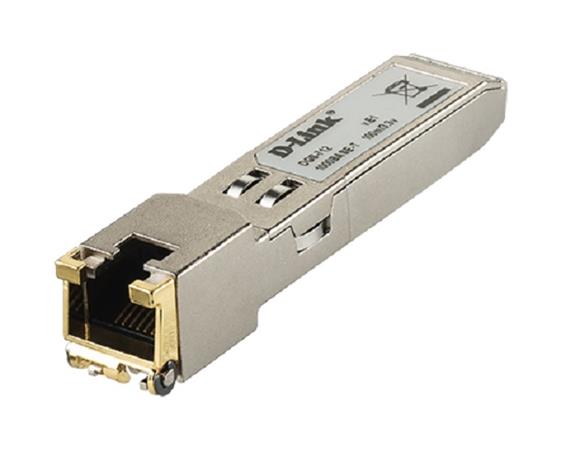

D-Link DGS-712 SFP 10/100/1000 BASE-T Copper Transceiver

Kompletní specifikace

- Up to 1.25Gbps bidirectional data links
- Hot-pluggable SFP footprint
- Fully metallic enclosure for low EMI
- Low power dissipation (1.2W typical)
- Compact RJ-45 connector assembly
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with SGMII interface

Note: Draft specifications subject to change

D-Links DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement.
It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802.3z and 802.3ab.
The DGS-712 plugs into any standard SFP interface allowing for 1000Base-T Gigabit transmission over standard Category 5 twisted pair copper.

Standard
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
Compliant with MSA SFP Specification
Transceiver Type
SFP (Small Form Pluggable)

Connector
RJ-45

Auto MDI/MDIX
Automatic crossover detection enabled
External crossover cable not required

Data Rate
1,000 Mbps (IEEE 802.3 compatible)
10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only

Cable Type
Cat. 5 twisted-pair cable

Maximum Cable Distance Coverage
100 meters

Supply Current
350mA (typical)
400mA (maximum)
1.3W max power over full range of voltage and temperature

Input Voltage
3.1V (minimum)
3.3V (typical)
3.5V (maximum)
Referenced to GND

Surge Current
30mA
Hot plug above steady state current

Dimensions (W x D x H)
.47” x 2.95” x .47” (11mm x 75mm x 11mm)

Weight
.53 lbs (0.2 kg)

Operating Temperature
32° to 185° F (0° to 85° C)

Storage Temperature
-40° to 185° F (-40° to 85° C)

Waranty
2-Year Limited1
