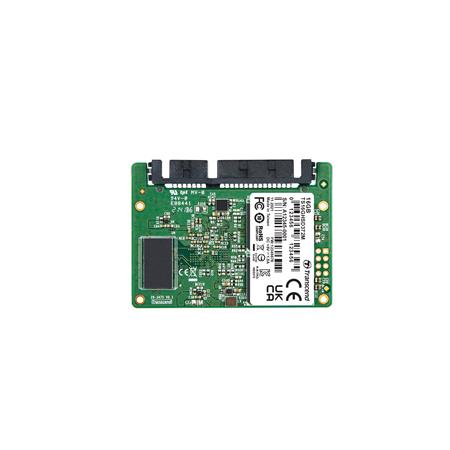

TRANSCEND HSD372M 16GB Half-Slim SSD disk SATA III 6Gb/s, MLC, 530MB/s R, 200MB/s W

Kompletní specifikace

Firmware Features
Built-in BCH ECC (Error Correction Code) functionality
Advanced Global Wear-Leveling and Block management for reliability
Advanced Garbage Collection
Static Data Refresh
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
TRIM command for better performance
NCQ command for better performance
Hardware Purge (optional)
Full drive encryption with Advanced Encryption Standard (AES) (optional)
Power-saving DevSleep (Device Sleep) mode

Hardware Features
Compliant with RoHS 2.0 standards
DDR3 DRAM Cache embedded
MLC NAND flash
Key components fortified by default with Corner Bond technology
Anti-sulfur technology implemented to prevent sulfurization in the environment
Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
Promised operational reliability in a wide temperature range (from -40°C to 85°C)
Supports Transcend Scope Pro software

Dimensions
54 mm x 39.8 mm x 4 mm (2.13" x 1.57" x 0.15")
Weight 9 g (0.32 oz)
Pin Count 7+15 pin
Form Factor
Half-slim (MO-297)
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
16 GB/32 GB/64 GB/128 GB
Flash Type
MLC NAND flash
Operating Environment
Operating Voltage
5V±5%
Operating Temperature
Standard Temp.0°C (32°F) ~ 70°C (158°F) Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation) 1.85 watt(s)
Power Consumption (Sleep) 0.38 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark) Read: up to 530 MB/s
Write: up to 200 MB/s
4K Random Read/Write (IOmeter) Read: up to 70,000 IOPS
Write: up to 50,000 IOPS
Mean Time Between Failures (MTBF) 2,500,000 hour(s)
Terabytes Written (TBW) up to 360 TBW
Drive Writes Per Day (DWPD) 2.6 (3 yrs)
