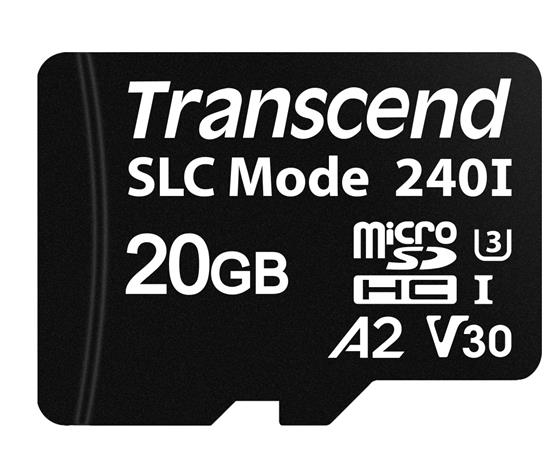

Transcend 20GB microSDHC240I UHS-I U3 V30 A2 (Class 10) 3D TLC (SLC mode) průmyslová paměťová karta, 100MB/s R, 80MB/s W

Kompletní specifikace

Transcend 20GB microSDXC240I UHS-I U3 V30 A2 (Class 10) 3D TLC (SLC mode) průmyslová paměťová karta, 100MB/s R, 80MB/s W

Utilizing top-quality 112-layer 3D NAND flash with SLC Mode technology, and rated to endure 100K P/E cycles, Transcend's USD240I microSDXC memory card combines the advantages of high performance and exceptional endurance at an affordable price. Transcend's microSDXC USD240I is able to operate in wide operating temperatures of -40?~85?, ideal for write-intensive applications such as outdoor transportation, surveillance systems, digital signage, and POS terminals.


Firmware Features
Built-in LDPC ECC (Error Correction Code) functionality
Early Move
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Supports password protection and secure erase via Scope Protibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.,


Hardware Features
Compliant with RoHS 2.0 standards
Electrostatic protection (ESD IEC 61000-4-2)
Compliant with SD specification 6.1
Compliant with UHS-I
Compliant with Video Speed Class 30 (V30)
Compliant with Application Performance Class 2 (A2)
Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
Promised operational reliability in a wide temperature range (from -40°C to 85°C)


Appearance
Dimensions 11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor
microSD flash card
Storage
Flash Type
112-layer 3D NAND flash (SLC mode)
Capacity
20 GB
Operating Environment
Operating Voltage
2.7V ~ 3.6V
Drop Test
1.5m free fall
Operating Temperature
Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -40°C (-40°F) ~ 85°C (185°F)
Humidity 0% ~ 95%
Shock
Acceleration: 490 m/s2 (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating) 20 G (peak-to-peak), 10 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.) 2.88 watt(s)
Performance
Read Speed (Max.) Up to 100 MB/s
Write Speed (Max.) Up to 80 MB/s
Terabytes Written (TBW) Up to 6,763 TBW
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
