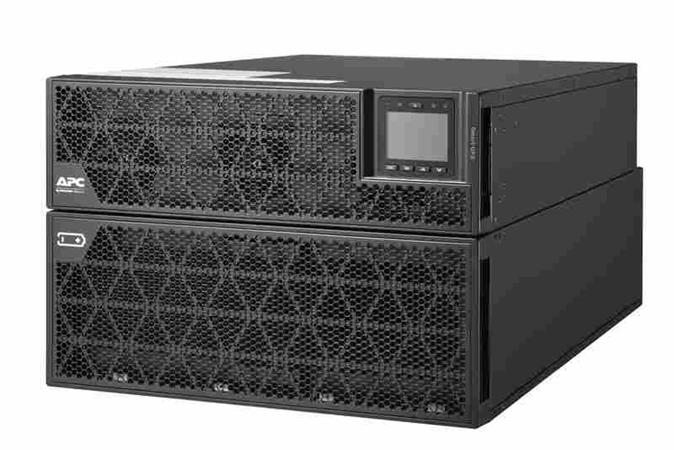

Smart-UPS SRTG Rack/Tower 20kVA RM 230V/400V 7U (20 kW)

Kompletní specifikace

Pro montáž do racku je zapotřebí zakoupit kolejnice SRTGRK1 (UPS) a SRTGRK2 (baterie, která je součástí dodávané UPS)

High Output Power Factor More real output power in watts. Unity on 15kVA –20kVA units.
High Efficiency “Green Mode” Achieves efficiency greater than 98%, which helps save utility and cooling costs without compromising performance or reliability.
Multi-color LCD Display Intuitive interface provides detailed and accurate information with the ability to configure locally.
Pre-installed Network Card Ability to control a group of receptacles. Ships with AP9641.
Single-Phase and 3-Phase Input/ Output Options 1PH:1PH, 3PH:1PH and 3PH:3PH power options for installation flexibility.
APC Smart-Slot Ability to add APC accessories for additional communication options.Three-year Warranty on Electronics
Emergency Power Off (EPO) Remote UPS shutoff in the event of an emergency.
Communication Ports Serial, USB and SmartSlotfor network accessory cards.

Key Features:
Unity power factor (20kVA/20kW)
Up to 98% efficiency
Rack / Tower convertible
Pre-installed AP9641 NMC
7RU height (3RU Power Module + 4RU Battery Module)
Intuitive multi-colour LCD
4RU additional battery packs
Parallel capable with additional accessory
1:1, 3:1 and 3:3 phase compatible

Požadavek na jištění vstupu při zapojení 1:1 a 3:1 je externí jistič 125A, průřez přívodních vodičů 35 mm2
Při zapojení 3:3 je zapotřebí externí jistič 50A, průřez přívodních vodičů 16 mm2
