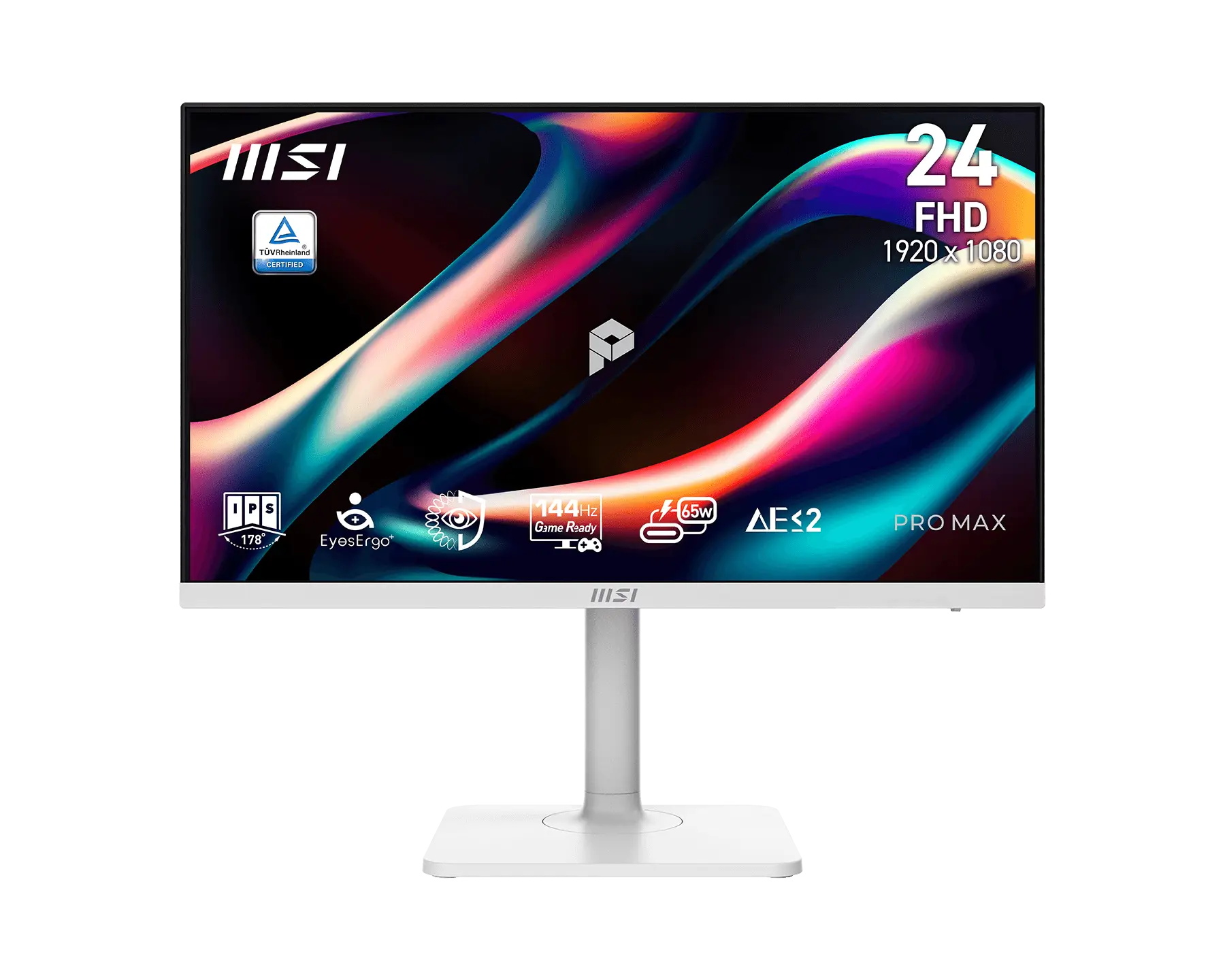

MSI monitor PRO MAX 241PHW E14 23,8" IPS/FHD/144Hz/1ms/HDMI/DP/USB-A,B,C/Výšk.nast./Pivot/bílá

Kompletní specifikace

MSI monitor PRO MAX 241PHW E14 23,8" IPS/FHD/144Hz/1ms/HDMI/DP/USB-A,B,C/Výšk.nast./Pivot/bílá

Website Name PRO MAX 241PHW E14
Color ID1/White-White
Local Dimming NA
Display
Screen Size 23.8" (60.45cm)
Active Display Area (mm) 527.04(H) x 296.46(V)
Curvature Flat
Panel Type IPS
Resolution 1920x1080 (FHD)
Pixel pitch (mm) 0.2745(H)x0.2745(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology FreeSync
Dynamic Refresh Rate Activated Range 48~144Hz
HDR (High dynamic range) HDR Ready
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 1500:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 54~169.78 KHz(H) /48~144 Hz(V)
Refresh Rate 144HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 13.837ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 108%/88%
NTSC (CIE1931 area percentage/overlap) 89%/82%
sRGB (CIE1976 area percentage/overlap) 122%/99%
sRGB (CIE1931 area percentage/overlap) 126%/99%
Adobe RGB (CIE1976 area percentage/overlap) 104%/93%
Adobe RGB (CIE1931 area percentage/overlap) 93%/85%
DCI-P3 (CIE1976 area percentage/overlap) 99%/96%
DCI-P3 (CIE1931 area percentage/overlap) 93%/92%
Rec.709 (CIE1976 area percentage/overlap) 122%/99%
Rec.709 (CIE1931 area percentage/overlap) 126%/99%
Rec.2020 (CIE1976 area percentage/overlap) 71%/72%
Rec.2020 (CIE1931 area percentage/overlap) 66%/67%
Quantum Dot Film NA
Surface Treatment Anti-glare with Circular Polarization
Touch Screen Non-touch
Display Colors 16.7M
Color bit 8 bits (6 bits + FRC)
Note_DP 1920 x 1080 (Up to 144Hz)
Note_HDMI 1920 x 1080 (up to 144Hz)
Note_DVI N/A
VESA DisplayHDR NA
VESA ClearMR NA
Delta E Delta E ? 2 (Pre-Calibration)
I/O Ports
HDMI 1
HDMI version 2.0b
HDMI HDCP version 2.2
DisplayPort 1
DisplayPort version 1.2a
DisplayPort HDCP version 2.2
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A 2
USB 3.2 Gen 1 Type B 1
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker 3Wx 2
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 14
Annual Energy Consumption (KWh) 14
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating D
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output YES
PD Output Power 65W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -90° ~ 90°
VESA Mounting 75x75mm
Frameless Design Yes
Console Mode v
HDMI CEC v
Firmware Update v
Stand Attachment Method Toolless locking
Stand Type 4-way Ergonomic (Tilt + Lift + Swivel + Pivot)
Stand with Integrated Mini PC Mount NA
KVM Version KVM 1.0
PIP/PBP NA
Optix Scope NA
Smart Crosshair NA
Remote Display NA
AI Gaming NA
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (USB)
Carton
Carton Item (SG14) SG14-M1S303A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 29
Q'ty/20cy (by air) pcs 290
Q'ty/40cy (by air) pcs 609
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1519
Net Weight (by air) kg 153.7
Gross Weight (by air) kg 252
pallet Q'ty (by sea) pcs 45
Q'ty/20cy (by sea) pcs 450
Q'ty/40cy (by sea) pcs 945
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2190
Net Weight (by sea) kg 234
Gross Weight (by sea) kg 380
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 541.93 x 200.81 x 381.11
Product Dimension with Stand (WxDxH) (inch) 21.34 x 7.91 x 15.
Product Dimension without Stand (WxDxH) (mm) 541.93 x 65.44 x 322.28
Product Dimension without Stand (WxDxH) (inch) 21.34 x 2.58 x 12.69
Stand Dimension (WxDxH) (mm) 230.81 x 200.81 x 415.72
Stand Dimension (WxDxH) (inch) 9.09 x 7.91 x 16.37
Weight (Net kg) 5.35
Weight (Net lbs) 11.79
Weight Without Stand (kg) 3.45
Weight Without Stand (lbs) 7.61
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 81.4 x 14.9 x 41
Inside Carton Dimension (WxDxH) (inch) 32.05 x 5.87 x 16.14
Outer Carton Dimension (WxDxH) (cm) 82.9 x 16.2 x 43.4
Outer Carton Dimension (WxDxH) (inch) 32.64 x 6.38 x 17.09
Weight (Gross kg) 8.
Weight (Gross lbs) 17.64
Accessories
DisplayPort Cable 0
DisplayPort Cable Version NA
HDMI Cable 1
HDMI Cable Version 2.0b
DVI Cable 0
DVI Cable Version NA
USB Type A to Micro USB Type B cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 1
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 PRO MAX 241 E14
Segment Name PRO MAX
Series Name LCD
Segment Name3 PRO MAX 241PHW E14
Extra Info
EOL Date
Barcode Info
UCC14 10824142445645
UPC 824142445648
JAN
EAN 4711377396288
