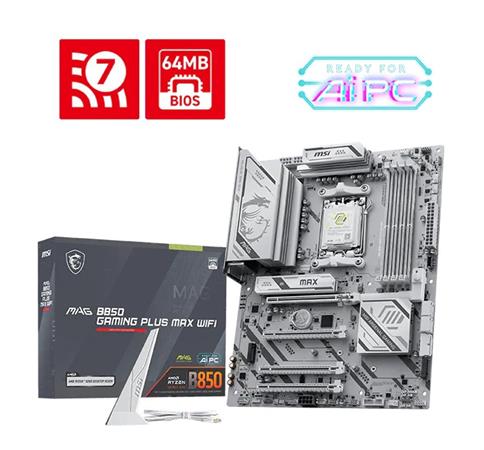

MSI MAG B850 GAMING PLUS MAX WIFI/AM5/DDR5/ATX

Kompletní specifikace

MSI MAG B850 GAMING PLUS MAX WIFI/AM5/DDR5/ATX

MSI MAG B850 GAMING PLUS MAX WIFI

Chipset: AMD B850
Rozměrový formát: ATX 243.84mmx304.8mm
Podpora pro procesory: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Patice procesoru: AM5

Paměť:

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Grafické porty:

1x DisplayPort

Support DisplayPort 1.2 with HBR2, maximum resolution of 4K 60Hz
Zvuková karta:

Realtek® ALC897
7.1-Channel High Definition Audio
Ethernet: Realtek® 8126 5G LAN
WLAN + Bluetooth: Wi-Fi 7 Solution

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
Rozšiřující sloty:

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot

Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
RAID řadič: RAID 0, RAID 1

Úložný prostor:

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot

Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M2_2 slot

Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
Supports up to PCIe 3.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
USB:
Zadní USB

4x USB 2.0
1x USB 5Gbps Type A
1x USB 10Gbps Type A
2x USB 10Gbps Type C
Přední USB

4x USB 2.0
4x USB 5Gbps Type A
1x USB 10Gbps Type C
Interní porty:

Napájení

1× Power Connector (ATX_PWR)
2× Power Connector (CPU_PWR)
1× Power Connector (PCIE_PWR 8pin)
1× CPU Fan
1× Combo Fan (Pump_Sys Fan)
4× System Fan
USB

4× USB 2.0 ports
4× USB 5Gbps Type-A ports
1× USB 10Gbps Type-C port
Ostatní

1× EZ Conn-header (JAF_1)
2× Front Panel (JFP)
1× Chassis Intrusion (JCI)
1× Front Audio (JAUD)
1× COM Port (JCOM)
1× Tuning Controller connector (JDASH)
3× Addressable V2 RGB LED connectors (JARGB_V2)
1× RGB LED connector (JRGB)
1× TPM pin header (TPM 2.0)
Porty na zadním panelu:

Clear CMOS Button
USB 10Gbps (Type-A)
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
USB 10Gbps (Type-C)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
S/PDIF-OUT
OS: Windows 11 64-bit
