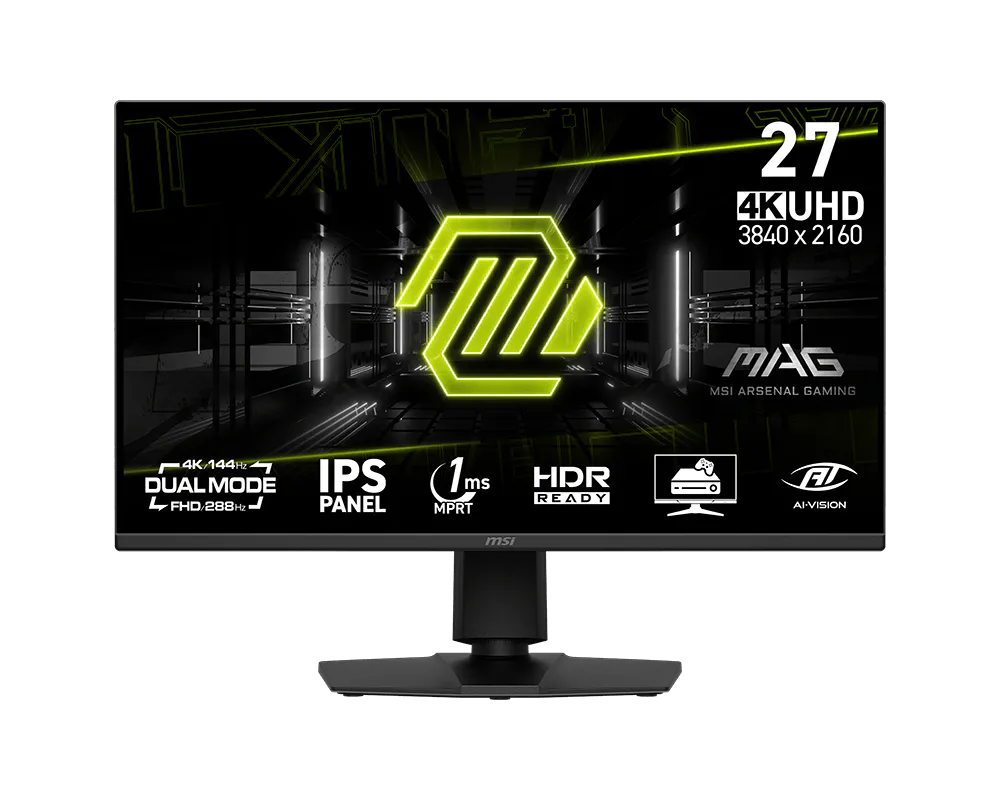

MSI Gaming monitor MAG 275UPD E14,27" IPS/3840x2160(UHD)/144Hz/1ms/2xHDMI/DP/výš.nast./pivot/černá

Kompletní specifikace

MSI Gaming monitor MAG 275UPD E14,27" IPS/3840x2160(UHD)/144Hz/1ms/2xHDMI/DP/výš.nast./pivot/černá

Website Name MAG 275UPD E14
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 27" (68.58 cm)
Active Display Area (mm) 596.736(H) x 335.664 (V)
Curvature Flat
Panel Type IPS
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.1554(H)x0.1554(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range UHD : 48~144Hz, FHD : 48~288Hz
HDR (High dynamic range) HDR Ready
SDR Brightness (nits) 250
HDR Brightness (Peak nits) NA
Contrast Ratio 1500:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency UHD:106.1~318.2 KHz(H) / 48~144 Hz(V), FHD:106.1~318.2 KHz(H) / 48~288 Hz(V)
Refresh Rate UHD:144Hz, FHD:288Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 11.322
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 90%/81%
NTSC (CIE1931 area percentage/overlap) 85%/77%
sRGB (CIE1976 area percentage/overlap) 130%/95%
sRGB (CIE1931 area percentage/overlap) 125%/95%
Adobe RGB (CIE1976 area percentage/overlap) 100%/84%
Adobe RGB (CIE1931 area percentage/overlap) 95%/79%
DCI-P3 (CIE1976 area percentage/overlap) 100%/90%
DCI-P3 (CIE1931 area percentage/overlap) 95%/90%
Rec.709 (CIE1976 area percentage/overlap) 130%/95%
Rec.709 (CIE1931 area percentage/overlap) 125%/95%
Rec.2020 (CIE1976 area percentage/overlap) 75%/70%
Rec.2020 (CIE1931 area percentage/overlap) 67%/65%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP UHD:3840 x2160 (Up to 144Hz), FHD:1920 x 1080 (Up to 288Hz)
Note_HDMI UHD:3840 x2160 (Up to 144Hz), FHD:1920 x 1080 (Up to 288Hz)
Note_DVI N/A
VESA DisplayHDR NA
VESA ClearMR NA
Delta E NA
I/O Ports
HDMI 2
HDMI version 2.1 (FRL 12G)
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B N/A
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker 2Wx 2
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 26
Annual Energy Consumption (KWh) 38
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power N/A
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 130 mm
Adjustment (Pivot) -90° ~ 90°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method N/A
Stand Type N/A
Stand with Integrated Mini PC Mount N/A
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display NA
AI Gaming AI Vision
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (DP)
Carton
Carton Item (SG14) SG14-M1S254A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 27
Q'ty/20cy (by air) pcs 270
Q'ty/40cy (by air) pcs 567
Dimension (L)(by air) mm 1219
Dimension (W)(by air) mm 1016
Dimension (H)(by air) mm 1500
Net Weight (by air) kg 235
Gross Weight (by air) kg 258
pallet Q'ty (by sea) pcs 38
Q'ty/20cy (by sea) pcs 380
Q'ty/40cy (by sea) pcs 798
Dimension (L)(by sea) mm 1219
Dimension (W)(by sea) mm 1016
Dimension (H)(by sea) mm 2141
Net Weight (by sea) kg 331
Gross Weight (by sea) kg 357
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 613.3 x 227.9 x 534.2
Product Dimension with Stand (WxDxH) (inch) 24.15 x 8.97 x 21.03
Product Dimension without Stand (WxDxH) (mm) 613.3 x 57.9 x 360.7
Product Dimension without Stand (WxDxH) (inch) 24.15 x 2.28 x 14.2
Stand Dimension (WxDxH) (mm) 308.6 x 227.9 x 411.3
Stand Dimension (WxDxH) (inch) 12.15 x 8.97 x 16.19
Weight (Net kg) 6.1
Weight (Net lbs) 13.45
Weight Without Stand (kg) 3.6
Weight Without Stand (lbs) 7.94
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 81 x 15 x 46.2
Inside Carton Dimension (WxDxH) (inch) 31.89 x 5.91 x 18.19
Outer Carton Dimension (WxDxH) (cm) 83 x 17 x 49
Outer Carton Dimension (WxDxH) (inch) 32.68 x 6.69 x 19.29
Weight (Gross kg) 8.7
Weight (Gross lbs) 19.18
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 0
HDMI Cable Version N/A
DVI Cable 0
DVI Cable Version 0
USB Type A to Micro USB Type B cable N/A
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MAG 275U E14
Segment Name MAG
Series Name LCD
Segment Name3 MAG 275UPD E14
Extra Info
EOL Date
Barcode Info
UCC14 10824142409227
UPC 824142409220
JAN
EAN 4711377318150
