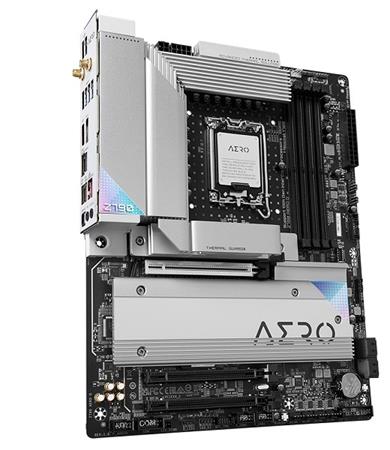

GIGABYTE Z790 AERO G/LGA 1700/ATX

Kompletní specifikace

Chipset: Intel Z790 Express Chipset

Rozměrový formát: ATX Form Factor; (30.5cm x 24.4cm)
Podpora pro procesory: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA 1700

Pozice na paměti: 4 x DDR5 DIMM sockets, Dual channel memory architecture
Podpora pro paměti: DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: ECC, non-ECC, XMP

Grafická karta: (Intel HD Graphics)

1 x USB Type-C port maximální rozlišení 4096x2304@60 Hz
1 x HDMI 2.0 port, maximální rozlišení 4096x2160@60 Hz

Zvuková karta: Realtek ALC1220-VB CODEC

2/4/5.1/7.1-channel
Podpora S/PDIF Out

Síťová karta:

Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Intel Wi-Fi 6E AX211 a, b, g, n, ac, ax
Bluetooth 5.3

Rozšiřující sloty:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 4 x SATA 6Gb/s connectors
M.2: 5 x M.2 Socket 3 connectors

USB:

Interní:
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Externí:
2 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support

Interní porty:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
5 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

Externí porty:

2 x SMA antenna connectors (2T2R)
2 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support
1 x DisplayPort In port
1 x HDMI 2.0 port
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
