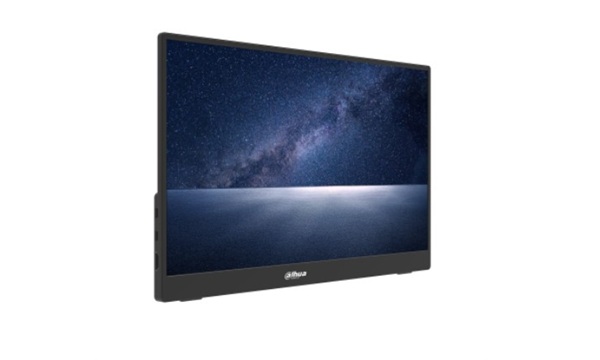

Dahua přenosný monitor PM16-F201SDT 15,6" Touch/IPS/1920x1080/6ms/250nits/1000:1/HDMI/USB/repro/černý
- Kompletní specifikace
- Hodnocení 0
- Komentáře 0
- Dahua přenosný monitor PM16-F201SDT 15,6" Touch/IPS/1920x1080/6ms/250nits/1000:1/HDMI/USB/repro/černýNení skladem3 228 Kč2 668 Kč bez DPH
Kompletní specifikace
Display
Model
DHI-PM16-F201SDT
LCD Technology
IPS
Backlight
ELED
Screen Size
15.6 inch
Aspect Ratio
16:9
Viewing Size
344.16 (H) × 193.59 (V) mm
Screen-to-Body Ratio
?80%
Viewing Angle
178° (H)/178° (V)
Display Mode
Horizontal
Pixel Pitch
0.17925 mm × 0.17925 mm (0.00706" × 0.00706")
Pixels Per Inch
141.21
Resolution
1920 (H) × 1080 (V)
Refresh Rate
60 Hz
Display Color
16.7M colors (6 bits + FRC)
Color Gamut
45% NTSC
Brightness
250 cd/m2 (max)
Contrast Ratio
1000:1
Response Time
6 ms
Lifespan
30,000 hrs
Operation Hours
7 × 16 H
Surface Treatment
Haze 25%, 3H
Low Blue Light
Software blue light protection
Device Ports
Input Port
2 x TYPE-C (full-function), 1 x HDMI 1.4 (1920 x 1080@60 Hz)
Output Port
1 × Audio out
Speaker
2 × 1 W
Power & Environmental Conditions
Power Supply
5 VDC, 3 A
Power Type
External power adapter (without adapter)
Power Consumption
7.5 W (basic), 7.5 W (typ.), 9 W (max)
Standby Power Consumption
<0.5 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity
10% - 85% (RH)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity
5% - 90% (RH)
General
Inclined Angle
90°
Product Dimensions
355.4 mm × 223.2 mm × 12.5 mm (13.99" × 8.79" × 0.49") (W × H × D)
Package Size
398 mm × 283 mm × 59 mm (15.67" × 11.14" × 2.32") (W × H × D)
Frame Width
U/L/R/D: 5.4 mm/5.4 mm/5.4 mm/21.5 mm(0.21" / 0.21" / 0.21" / 0.85")
Net Weight
0.87 kg (1.92 lb)
Gross Weight
1.4 kg (3.09 lb)
Casing Color
Black
Control Mode
Four-button
Status Indicator Light
Yes
Wall Mount VESA
75 mm (2.95")
Accessory
Type-C cable (full-function), HDMI cable, USB to Type-C cable, user manual (QR code sticker), QSG, regulatory manual, energy efficiency label, storage bag
Optional Accessory
Wall mount
Touchscreen
Response Time
?10 ms
Touch Technology
Capacitive
Attachment Method
Zero Air Gap
Touch Points
10
Touch Accuracy
± 1 mm (0.04") (over 90% area)
Valid Touch
2 mm (0.08")
Model
DHI-PM16-F201SDT
LCD Technology
IPS
Backlight
ELED
Screen Size
15.6 inch
Aspect Ratio
16:9
Viewing Size
344.16 (H) × 193.59 (V) mm
Screen-to-Body Ratio
?80%
Viewing Angle
178° (H)/178° (V)
Display Mode
Horizontal
Pixel Pitch
0.17925 mm × 0.17925 mm (0.00706" × 0.00706")
Pixels Per Inch
141.21
Resolution
1920 (H) × 1080 (V)
Refresh Rate
60 Hz
Display Color
16.7M colors (6 bits + FRC)
Color Gamut
45% NTSC
Brightness
250 cd/m2 (max)
Contrast Ratio
1000:1
Response Time
6 ms
Lifespan
30,000 hrs
Operation Hours
7 × 16 H
Surface Treatment
Haze 25%, 3H
Low Blue Light
Software blue light protection
Device Ports
Input Port
2 x TYPE-C (full-function), 1 x HDMI 1.4 (1920 x 1080@60 Hz)
Output Port
1 × Audio out
Speaker
2 × 1 W
Power & Environmental Conditions
Power Supply
5 VDC, 3 A
Power Type
External power adapter (without adapter)
Power Consumption
7.5 W (basic), 7.5 W (typ.), 9 W (max)
Standby Power Consumption
<0.5 W
Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity
10% - 85% (RH)
Storage Temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage Humidity
5% - 90% (RH)
General
Inclined Angle
90°
Product Dimensions
355.4 mm × 223.2 mm × 12.5 mm (13.99" × 8.79" × 0.49") (W × H × D)
Package Size
398 mm × 283 mm × 59 mm (15.67" × 11.14" × 2.32") (W × H × D)
Frame Width
U/L/R/D: 5.4 mm/5.4 mm/5.4 mm/21.5 mm(0.21" / 0.21" / 0.21" / 0.85")
Net Weight
0.87 kg (1.92 lb)
Gross Weight
1.4 kg (3.09 lb)
Casing Color
Black
Control Mode
Four-button
Status Indicator Light
Yes
Wall Mount VESA
75 mm (2.95")
Accessory
Type-C cable (full-function), HDMI cable, USB to Type-C cable, user manual (QR code sticker), QSG, regulatory manual, energy efficiency label, storage bag
Optional Accessory
Wall mount
Touchscreen
Response Time
?10 ms
Touch Technology
Capacitive
Attachment Method
Zero Air Gap
Touch Points
10
Touch Accuracy
± 1 mm (0.04") (over 90% area)
Valid Touch
2 mm (0.08")
