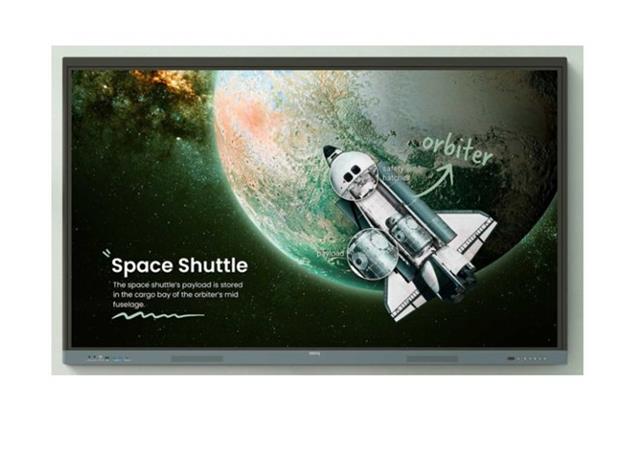

BenQ LCD RE8604A 86" interaktivní panel IPS Touch/3840×2160/1200:1/8ms/450 nits/HDMI/USB/DP/VGA/SPDIF/RS-232/RJ-45/Repro

Kompletní specifikace

Panel
Screen size 86''
Light source Direct LED
Panel type IPS
Orientation Landscape
Operation hours 18 hours / 7 days
Active area 1895.0 × 1066.0 mm
Aspect ratio 16:9
Contrast ratio (typical) 1200:1
Dynamic contrast ratio 50,000:1
Resolution UHD 3840 × 2160 pixels
Response time 8 ms
Pixel pitch 0.49 mm(H) × 0.49 mm(V)
Frame rate 60 Hz
Viewing angle 178°
Panel Surface AG, Haze 25%
Color gamut 72% NTSC
Color depth 10-bit
Light life (typical) 50,000 hrs
Brightness without glass (typical) 450 nits


Glass
Thickness 3.2 mm
Germ-resistant technology N/A
Anti-glare coating Yes
Hardness 9H tempered
Glass Surface Haze 3% ~ 8%


Touch screen
Touch technology Precision IR
Touch points up to 40
Touch resolution 32767 × 32767
Touch response time < 5 ms
Accuracy ±1.0 mm (middle 90% touch area)
OS Supported Windows 7/8/10/11 | Mac OS X 11 or above | Chrome OS 101 or above
Touch pen requirement ? 3.5 mm
OS for Touch Driver Free Windows 7/8/10/11 | Mac OS X 11 or above | Chrome OS 101 or above


Platform System
SoC MTK/MT9679
CPU A73 × 4
GPU G52 MC1
NPU
OS Android 14.0
Memory | Storage 8 GB | 64 GB

Connectivity
VGA (in | out) N/A
HDMI (in | out) 3 × HDMI 2.0 | 1 × HDMI 2.0 (Optional)
DisplayPort (in | out) N/A
Audio (L/R, RCA) (in | out) N/A
Micro SD reader 1
Slot-in PC (OPS) 1
SPDIF (in | out) 0 | 1 (optical)
Power (AC) (in | out | switch) 1 | No | 1
Ethernet LAN 10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 2
RS-232 ( in | out) 1 | 0
3.5 mm Line in (1) N/A
3.5 mm Line in (2) Mic × 1
3.5 mm Line out Earphone × 1
USB-A 1 × 2.0 + 4 × 3.0
USB-A (spec name) 1 × USB 2.0 + 4 × USB 3.2 Gen 1 × 1
USB-B (for touch) 2 × 2.0
USB-B (spec name) 2 × USB 2.0
USB-C 1 × 2.0 + 1 × 3.0 (PD 65 W)
USB-C (spec name) 1 × USB 2.0 + 1 × USB 3.2 Gen 1 × 1 (PD 65W)
USB-C out


Built-in peripherals
Camera N/A
Microphone N/A
Speaker 2 × 20 W
Subwoofer N/A
Particle sensor N/A
Temperature sensor N/A
Humidity sensor N/A
Air sensor N/A
Air Ionizer N/A
Wi-Fi N/A
Bluetooth N/A
Motion sensor N/A
NFC N/A

Power
Power AC 100-240V 50/60Hz
Switch 1
Voltage AC 100-240V 50/60Hz
Wake up LAN/HDMI
Maximum power consumption 534.64 W
Standby power consumption <0.5 W
Typical power consumption 157.2 W



Physical
Dimensions (W x H x D) 1961.8 × 1163.9 × 87.7mm (77.2 × 45.8 × 3.5 inch)
Bezel width (T I B I L I R) 17.2 | 48.3 | 17.2 | 17.2 mm (0.7 | 1.9 | 0.7 | 0.7 inch)
Weight (product I shipping) 62.5 kg | 80.2 kg (137.7 lbs | 176.8 lbs)
Mount (screws) VESA 800 × 600 mm ( 4 × M8 × 25L)
VESA Hole (for Media Player) N/A
Back Cover Metal
Back Cover Color Black (no logo)
Handles 4
Pen Tray N/A
Shipping dimensions (W x H x D) 2095 × 185 × 1265 mm (82.5 × 7.3 × 49.8 inch)


Environment
Storage temperature -10°C ~ 60°C | 14°F ~ 140°F
Operating temperature 0°C ~ 40°C | 32°F ~ 104°F
Storage humidity 10% ~ 80% RH non-condensing
Operating humidity 20% ~ 80% RH non-condensing


Software
Flicker free Yes
Low Blue Light Yes
Device management DMS
Quick access tool Floating Tool
WPS (office viewer APP) N/A
Content management N/A
Color Calibration SW N/A
Wireless screen sharing InstaShare 2
Broadcast system X-Sign Broadcast
Account management AMS
User interface (4K) Yes
Whiteboarding EZWrite 6.0


Accessories:
Adaptor N/A
Warranty card (by region) N/A
Stylus 2
Wall mount 1
RS232 Cable N/A
Quick Start Guide in box 1
User’s Manual (electronic file) 1
Remote control 1
Carton BenQ printing
Cables 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
